MODELPORT for Archicad
Import | Review | Edit | Manage | Optimize

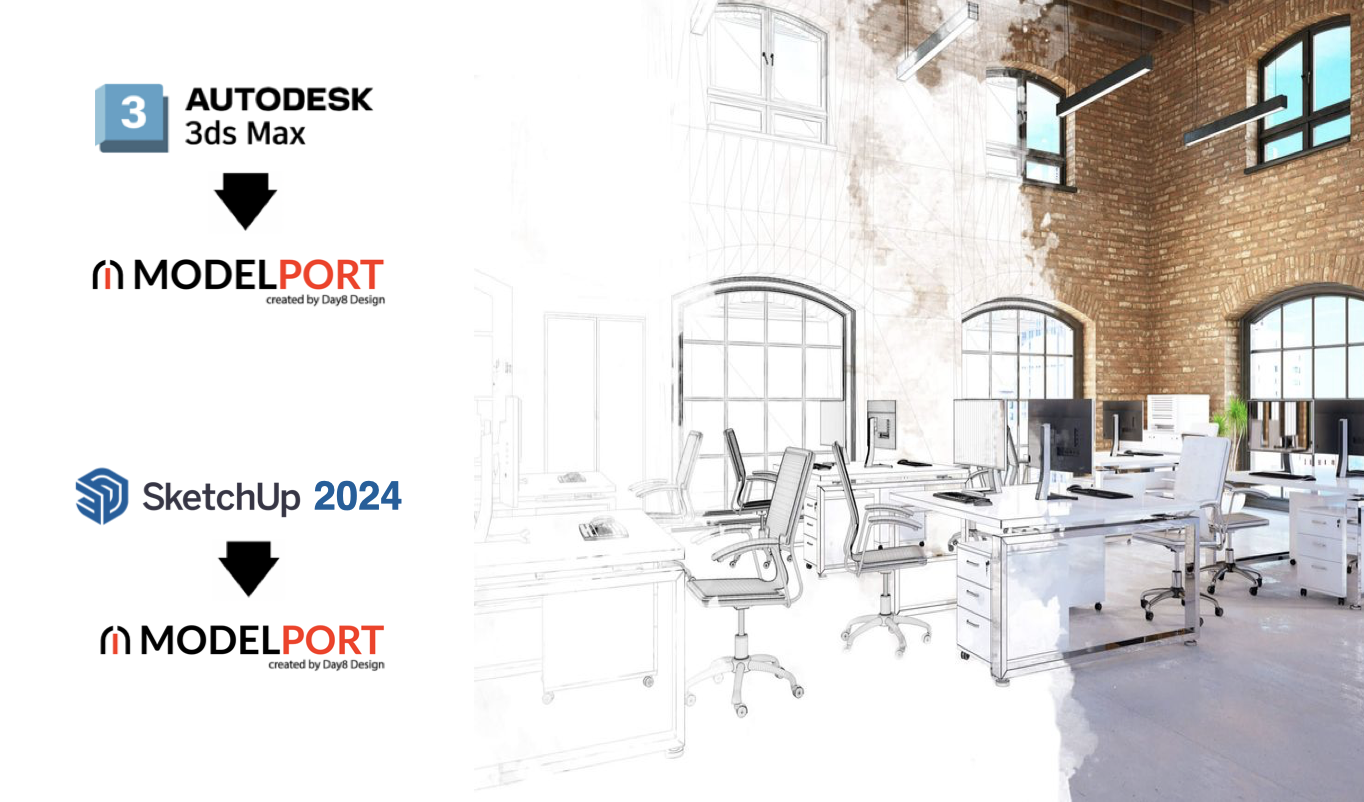

With ModelPort you can import, preview, edit and manage settings for a wide variety of objects such as OBJ, FBX, DAE, Revit, SketchUp and more.  We invite you to review the features below that have made it the leading Archicad add-on for editing and managing imported models.

ModelPort Key Benefits :

• Expanded import formats compared to Archicad defaults
• Batch import to save time converting third party models
• Preview third party models before import
• Edit imported models from OBJ, FBX, DAE, RFA, SKP & more
• Clean up messy graphics for 2D symbols and 3D models
• Add textures and edit materials for any imported surface
• Delete selected meshes and elements in the ModelPort Editor
• Reduce polygon count & file size of imported models
• MVO detail level can be linked to model elements

Formats Supported thru ModelPort’s Direct Import

Formats Supported thru
Archicad’s Standard Import

IMPORT OPTIONS

Use “Import from Archicad” for RFA, IFC & other formats

• For Revit RFA, IFC and other formats NOT available in ModelPort’s default 14 format options  use “Import from Archicad” to edit and manage these model types.
• Here’s how you use the “Import from Archicad” feature…

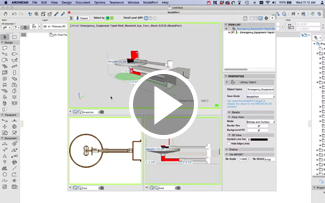

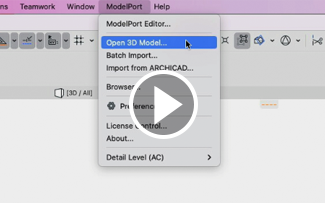

  • Import RFA, IFC or Archicad elements using Archicad’s built-in importer
  • Place and select the Object
  • Choose the Import from Archicad option from the ModelPort menu

Import Archicad elements into ModelPort

• Use “Import from Archicad” to import Walls, Slabs, Columns, Morphs and other elements into ModelPort in order to combine Archicad elements with an imported model.
• In this example we increased performance, cleaned up the symbol and customized graphics of a Viking Range model downloaded from the manufacturer’s website.

Batch Import to reduce wasted time

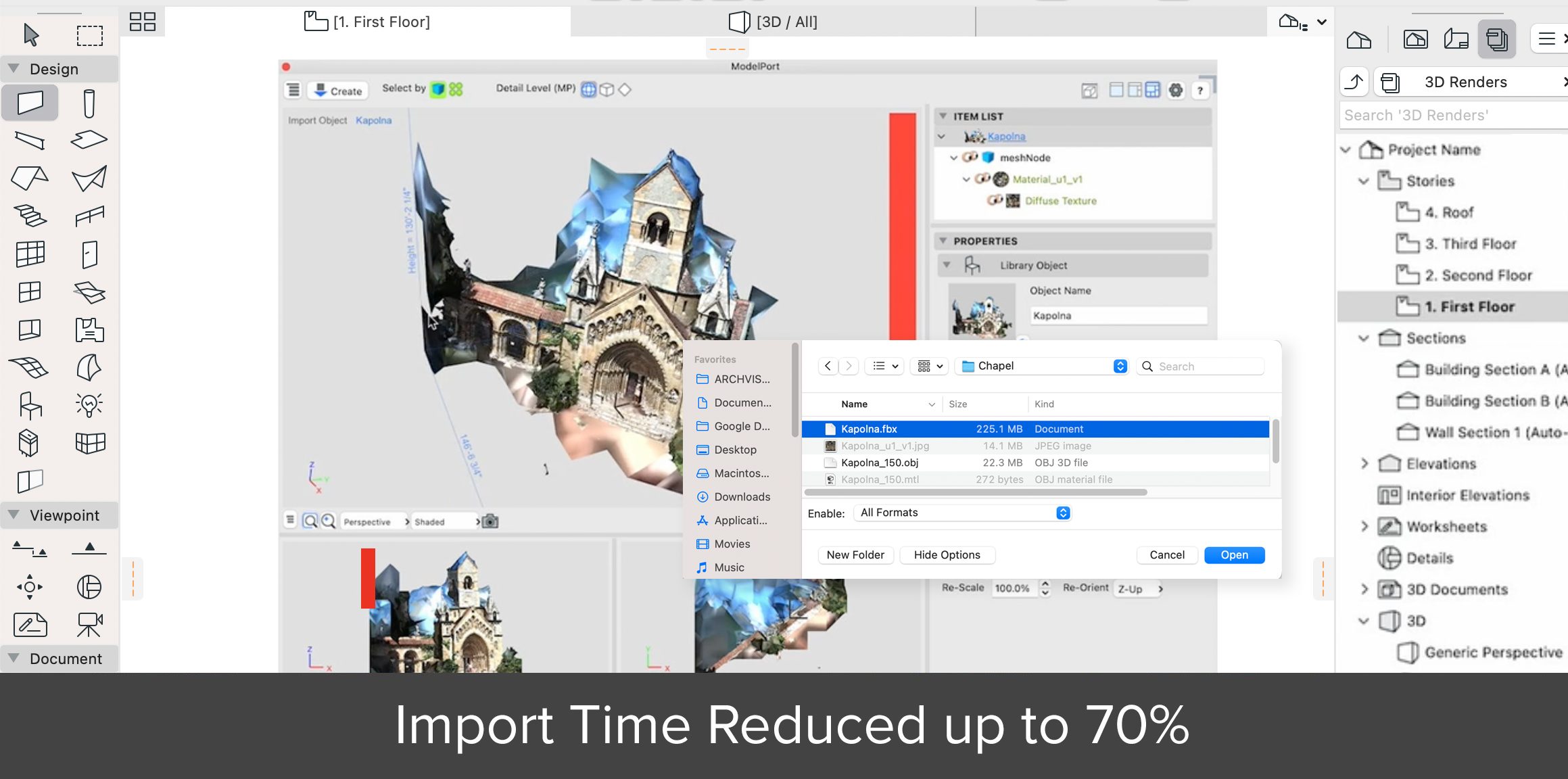

• If you regularly download objects from third party websites or manufacturers this feature allows you to quickly import files.
• With ModelPort select files and use Batch Import to reduce time importing multiple models.

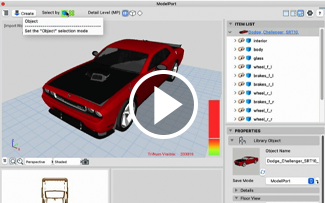

Visual & interactive editor of imported elements

• Select elements that are highlighted in perspective, elevation and plan views.
• Edit the Properties of a selected element from the Items List or a Context Menu.
• Interactive click-editable dimensions within the Preview Window.
• Accurately rescale imported models with percentage values.

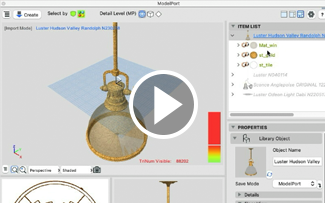

Multiple model review

• Review multiple scenes before import and avoid cluttering your embedded library.
• You can have multiple scenes open within the Editor which saves time opening and closing imported models.
• When a new Archicad project is opened ModelPort will not close the opened scenes.

Cleans up 2D symbols and 3D models

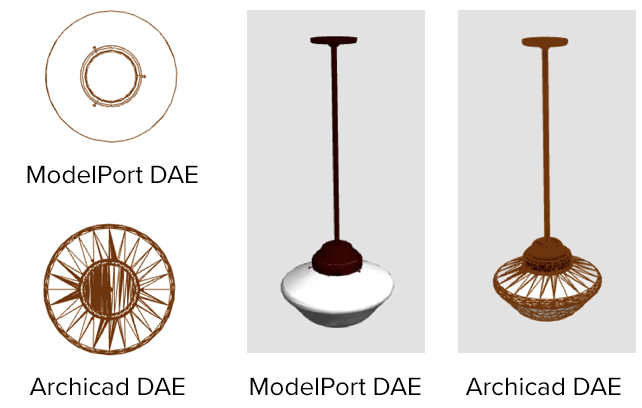

• When a model or objects are imported to Archicad with curved surfaces it will often create messy 2D symbols and 3D graphics.
• Imports using ModelPort will automitically clean up both the symbols in plan as well as the graphics in 3D model elements.

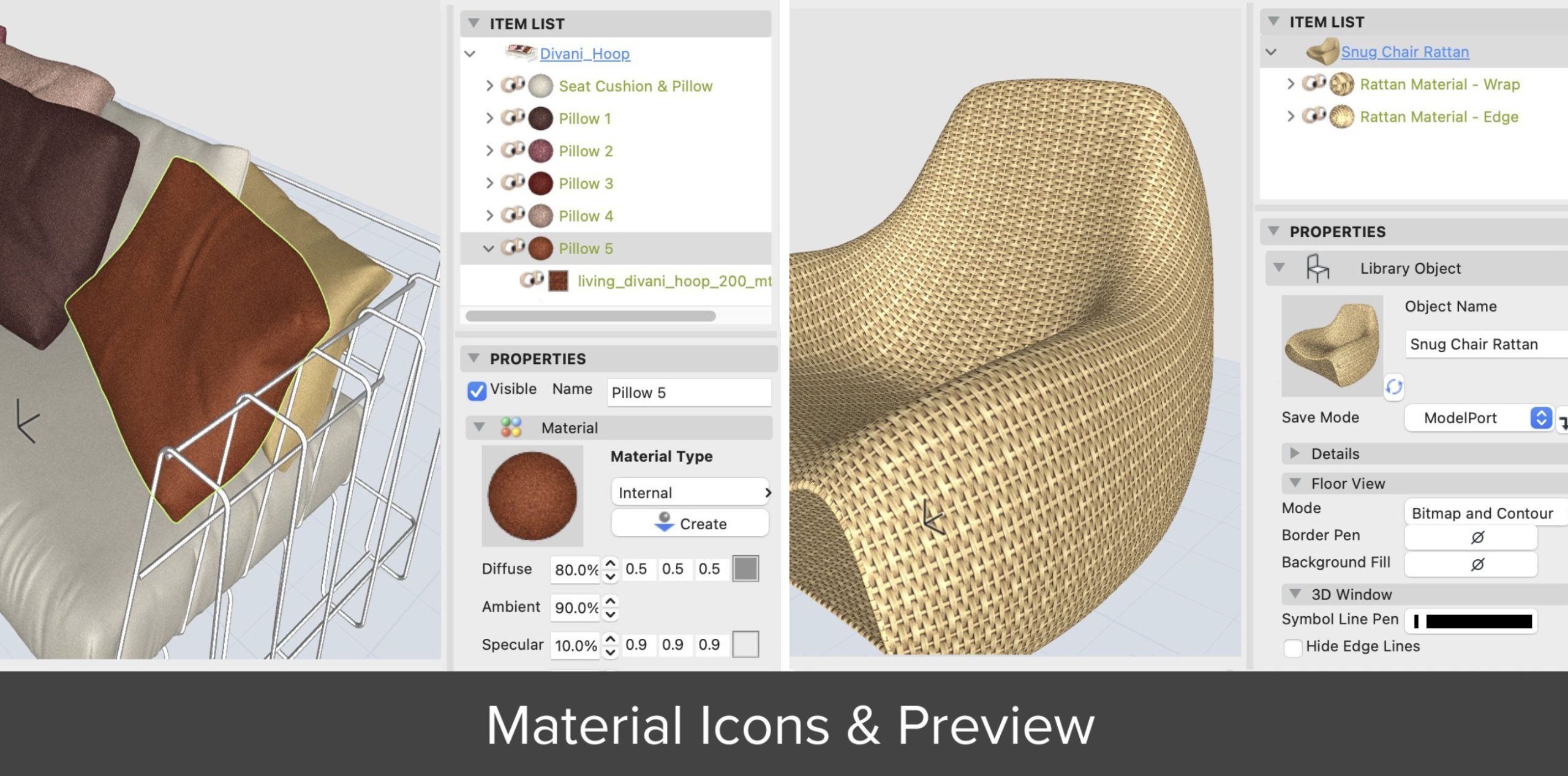

Material Preview and Visual Feedback

• To help users better identify model scenes, surfaces and textures we’ve automated previews and material icons for the following…
  • Preview image is now automated for Material preview sub-view, Scene (GDL image) preview image and Texture preview image.
  • Preview icons are now automated for Scene items, Material items and Texture items.
• Provides interactive feedback to increase ease of use such as…

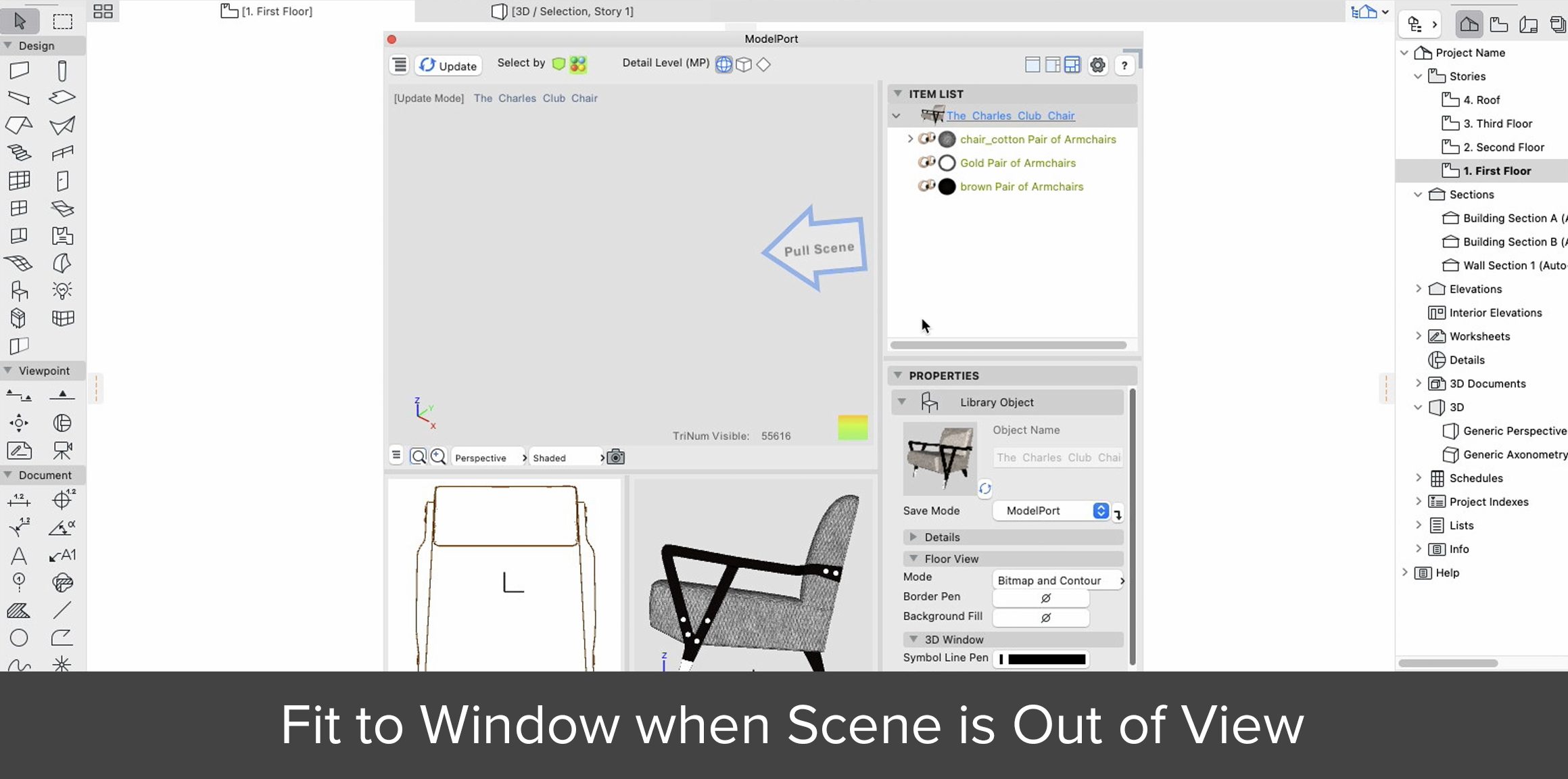

  • When your model is out of view click “Pull Scene” to fit content to window.

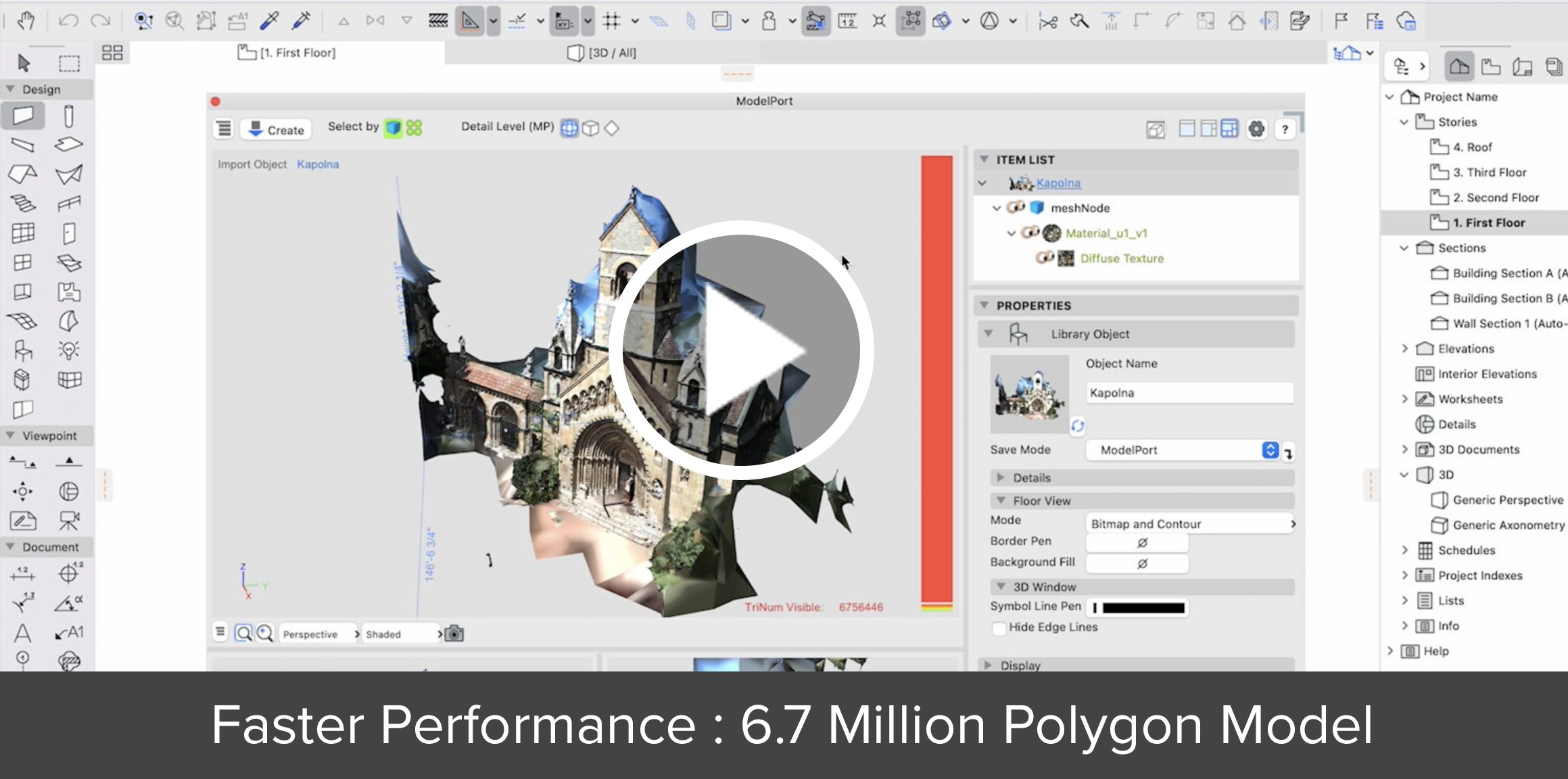

Reduce object polygon count & detail level

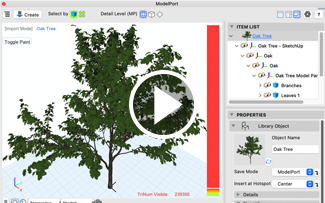

• An object with a high polygon count can decrease speed and performance of Archicad.
• A Polygon Count Indicator in the 3D Viewer shows red in the bar graph when the polygon count is high.
• With the Poly Reduced Editor you can decrease the polygons on models that have a high polygon count.
• Adjust the detail level of an imported model and link it with Model View Options.

Reduce file size with ModelPort Format

• The Save Mode offers 3 format options:
  • ModelPort : Reduces size of imported files up to 80% (requires ModelPort Plug-in).
  • GDL : Archicad format but doesn’t store ModelPort data and creates larger file size.
  • GDL+ModelPort : All benefits of both options above but creates largest file size.

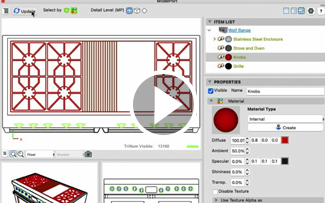

Set color & pen weights

• In Archicad imported objects typically have limited options for editing Pen Weights.
• With ModelPort users can set custom pens and colors for selected components for the Plan, Elevation and 3D View.
• Define the Pen Color for an Object’s 3D Contour

Define visibility of model elements

• When using 3rd party models you’ll often find that you need to delete or hide elements that we’re left ON by the author or not required for your project.
• In ModelPort you can choose to delete or hide elements within the Preview Window or the Properties of a selected element.

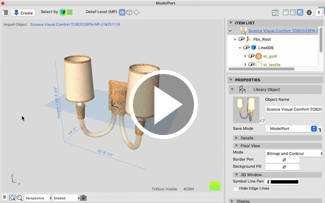

Scale object size with editable preview

• Resize elements with click editable dimensions within the Preview Window.
• Other properties are also click editable including library part name, surfaces and other element information within the editor.

Transform object elements

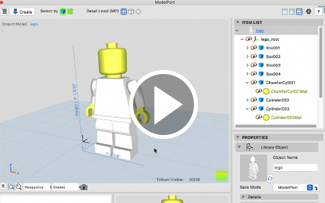

• Use ModelPort to rotate and move components of an imported object
  • Adjust the position using X, Y & Z
in the the Transfer Properties panel
  • Adjust the rotation using X, Y & Z
in the the Transfer Properties panel

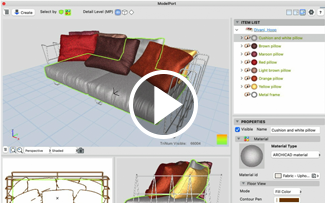

Add textures to model elements

• ModelPort allows users to edit textures but many imported elements do not include a texture.
• With this new update you can right click ANY material to add a texture.

MVO xxxxxxxx

• Xxxxxx
• Xxxxxx
• Xxxxxx

MVO xxxxxx

• Xxxxxxx
• Xxxxxxx
• Xxxxxxx

MVO xxxxxxxx

• Xxxxxx
• Xxxxxx
• Xxxxxx

FLEXIBLE LICENSING

Work at home, office and with teams

Organize objects with the ModelPort Browser

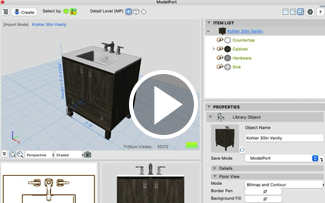

• The ModelPort Browser helps you organize and preview downloaded libraries.
• The browser offers visual navigation through a library of downloaded objects.
• A selected object in the browser can be opened into ModelPort for review without importing to Archicad.

Organize objects with the ModelPort Browser

• The ModelPort Browser helps you organize and preview downloaded libraries.
• The browser offers visual navigation through a library of downloaded objects.
• A selected object in the browser can be opened into ModelPort for review without importing to Archicad.

NEW FEATURES

Benefits in the new version

FLEXIBLE LICENSING

Work at home, office and with teams

Compare Features Between ModelPort and Archicad >>
